Die casting Aluminum Material Integrated LED Lighting ,high lumen brightness led light parts with PCB, Lens choose
Model No： EK-LD06
Match Power： 60W/180W
Contain Accessories： Aluminum Housing,Toughened Glass, Assembly Screws,Lamp Post pole,
Item : IP65 LED Street Lighting Housing
Power : 60W / 180W
Input Voltage : AC220 - 240V, 50/60 HZ
Fargevelg: Mørk grå, lys grå, svart, tilpasset etc
Lifespan : ≥50000 Hours
Produktfunksjoner
- Once powder coating can give 5years guarantee
- Four size to match differentpower 40w 80w 120w 150w 180w
- IP66 grade waterproof to protect lighting use seaside
- IK09 glass grade to use for high standard projects

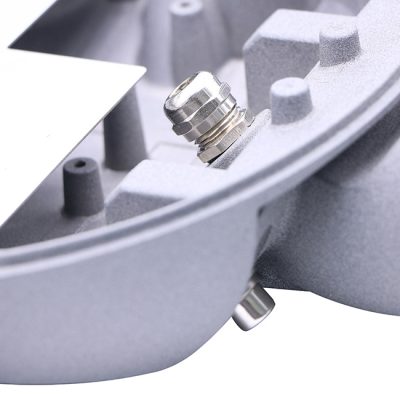

- Høykvalitets tilbehør 304 rustfritt stål skruer
- 72hours salt spray testing, suit use on seaside road way,
- High heat dissipation conductive with convolution property

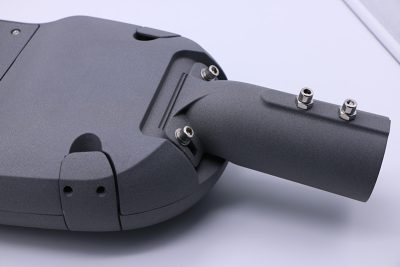

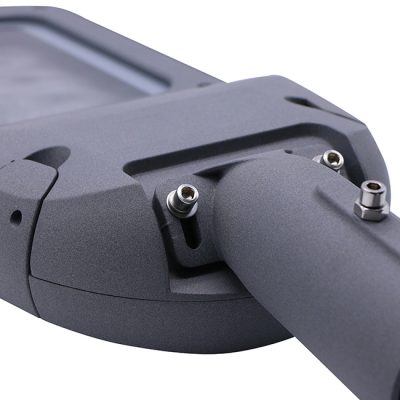

- Lamp post match : 50/60mm
- Powder treatment: sandy gray powder painting
- Surface Color : Dark gray, Light gray & Black and others be customized
Produkt spesifikasjon
Powder Coating 100w 120w IP66 LED Street Light Housing
EK-LD06
IP66/IP67 , IK09/IK10,
Materiale: ADC12 aluminium
Farge på huset: grå, svart,
- - Made of ADC12 aluminum Die-casting,
- - IP66 waterproof ADC12 Aluminum case,
- - surface treated by Spray-painting to Prevent Corrosion and color Persistence,
- - High heat dissipation conductive
- - Corrosion resistant polyester powder paint 2.0mil thickness,
- - Standard colors : Dark gray, Light gray & Black any special can be customized,
Hele serien og spesifikasjoner
| Modellkode | Housing Size （mm) | Match Power | Lamp Post （mm) | Weigh（Kg) | Tilbehør |
| EK-LD06(XS) | 535*200*120 | 20W-40W | 50 | 2.9 | Heatsink body,armoured glass,Waterproof Rubber Ring，304 s/s screws, |
| EK-LD06(S) | 590*235*125 | 50W-80W | 50/60 | 3.6 | |
| EK-LD06 (M) | 690*260*130 | 100W-120W | 60 | 5.8
| |
| EK-LD06 (L) | 693*310*181 | 150W-180W | 60 | 8.0 | |
| Legend: Std = IP66 IK09 Testing certificates | |||||
| Husmateriale: Pressstøpt aluminium + pansret glass | |||||
| Arbeidstemperatur -40℃~50℃ 20%~90% HR | |||||
