5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Produktnavn: Street Light body
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Vanntett indeks: IP66 IP67
Jordskjelvsikker indeks : IK08 IK09
Arbeidstemperatur (℃): -20-60
Overflatefarge: mørk grå, lys grå, svart, tilpasset etc
Contain Accessories : Complete finished street lights
Produktfunksjoner
- Aluminiumskroppen er laget av ADC12 aluminiumspressstøping, overflaten behandlet med spraymaling for å forhindre korrosjon og fargepersistens.
- Design med stort kjøleribbefinne for rask teori til fordel for konveksjon mellom kald og varm luft, for å beholde den gode varmespredningen til lamper og øke lyset hele levetiden.
- Strømleverandørboks for å holde lampen komplett og enhetlig.
- Ventilasjonsdesign for å forhindre støv og hindre stillestående vann for å oppnå den lette lang levetid.

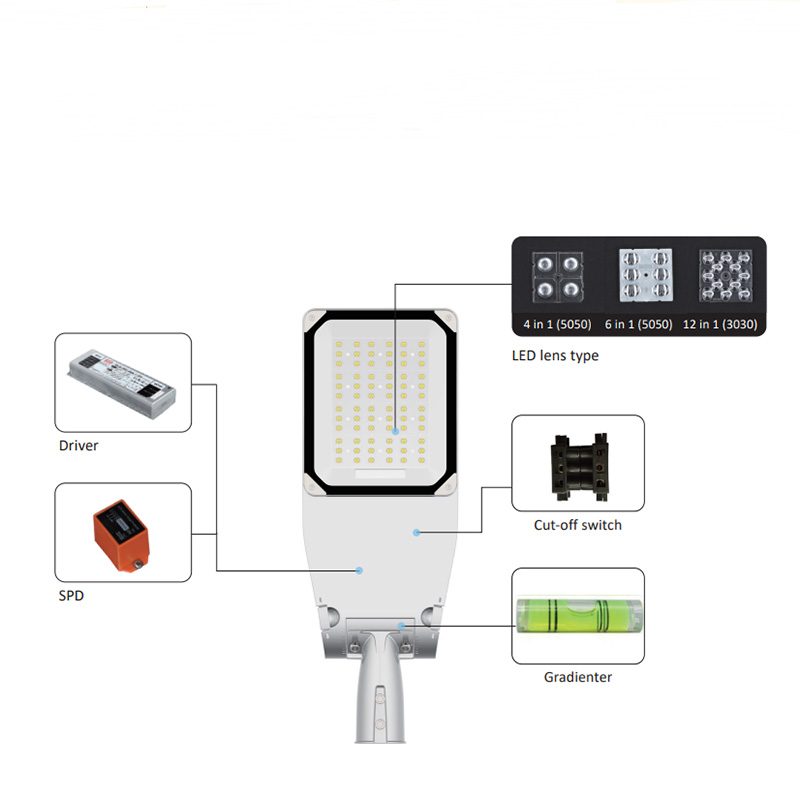

Product Details

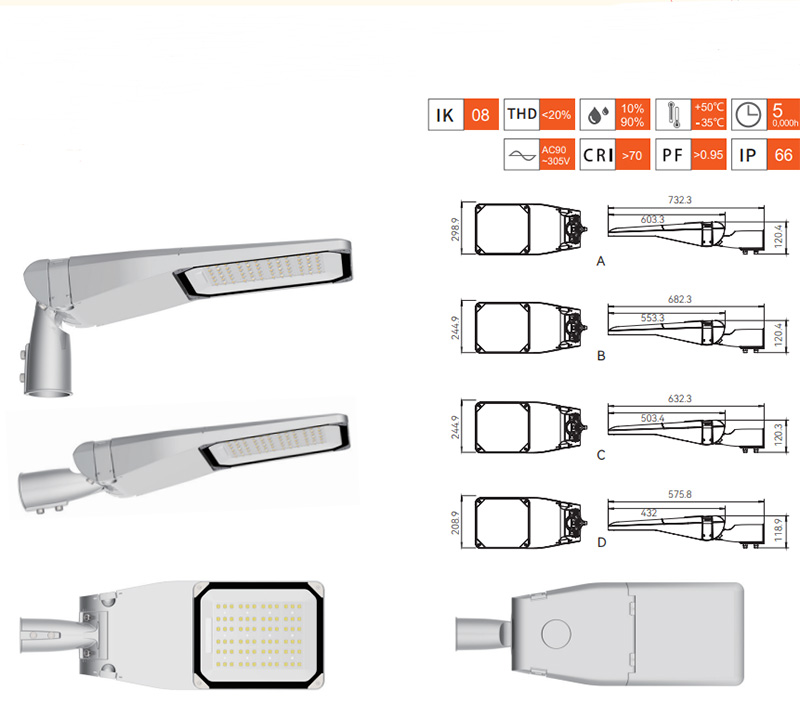

Product Size Chart
Spesifikasjon og dimensjon
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP klasse | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materiale | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
Shenzhen EKI Lighting Industrial Co.,Ltd. er produsent av Aluminium Die-Casting LED Light Housing Med ulike av våre egenutviklede design og teknologier.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
